Assembling the frame

Step 1

Check the Packages

Before you unpack the greenhouse, make sure you received the model you ordered. The frames are packed in cardboard (one or more boxes).

Step 2

Get a General Idea of Which Frames Go Where

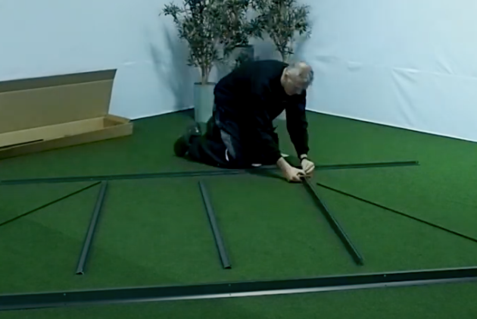

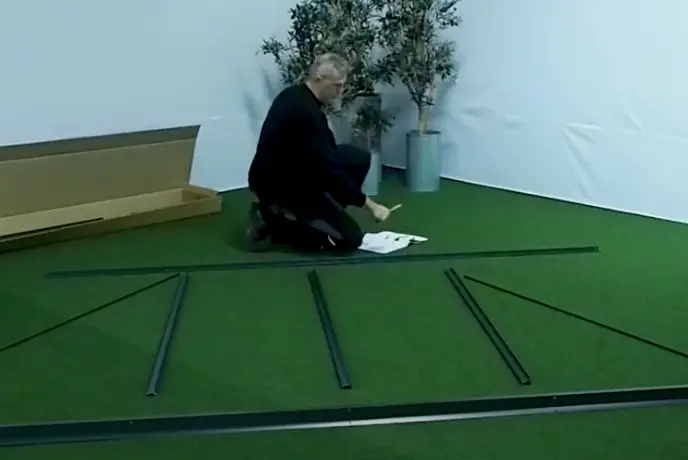

To get a general idea of where the frames go, lay them out before you begin to bolt them together.

After this, start to assemble the sections in the order specified in the instructions.

Step 3

Assemble the Sides and Gable Sections

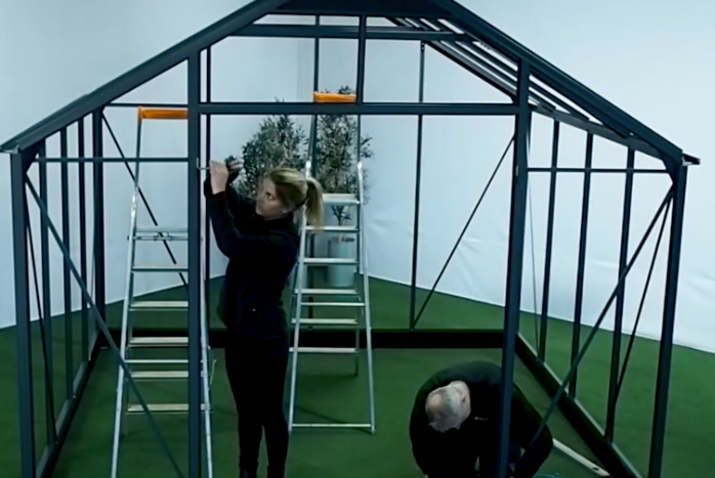

Assemble the sides and gable sections on a level surface. After assembling them, lift the sides and the gable sections onto the base and assemble as shown in the instructions.

Step 4

Attach the Assembled Frame to the Base

If you have purchased a steel Juliana base, attach the assembled frame to this using the included J-clips. Slide the curved section of the J-clip underneath the base and attach the greenhouse as shown in the instructions. Note that some models may require additional fastening of the greenhouse.

To facilitate the assembly of sides with gables, it's a good idea to loosen the corner bolts on the gable sections to make it easier to adjust and slide the frame sections into position.

If you cast the base yourself, or are using a wooden base, attach the greenhouse with one bolt for each section of the bottom frame. Remember to contact your insurance company to find out what is covered if the casting is not done.

Step 5

Attach the Ridge Bar

Attach the ridge bar.

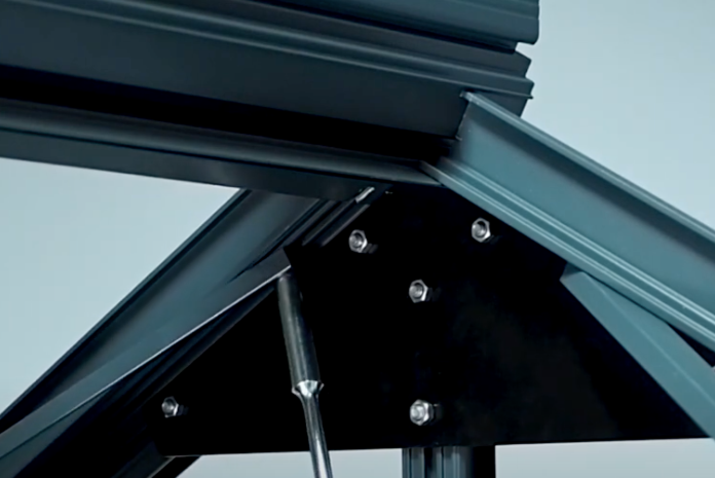

Loosen the bolts at the top of the gable sections to make it possible to gently push the frames until the ridge bar is in place. Note that there may be a different roof solution for your greenhouse. If that's the case, follow the provided instructions.

Step 6

Attach the Roof Battens

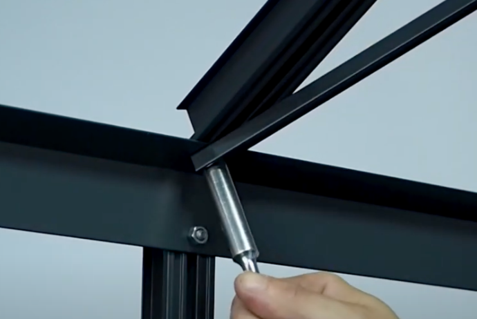

Attach the roof battens to the ridge bar and gutter sections. Remember to use extra bolts wherever opening windows are to be installed.

Step 7

Assembling Windows

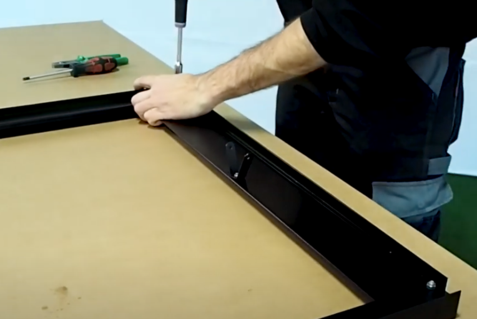

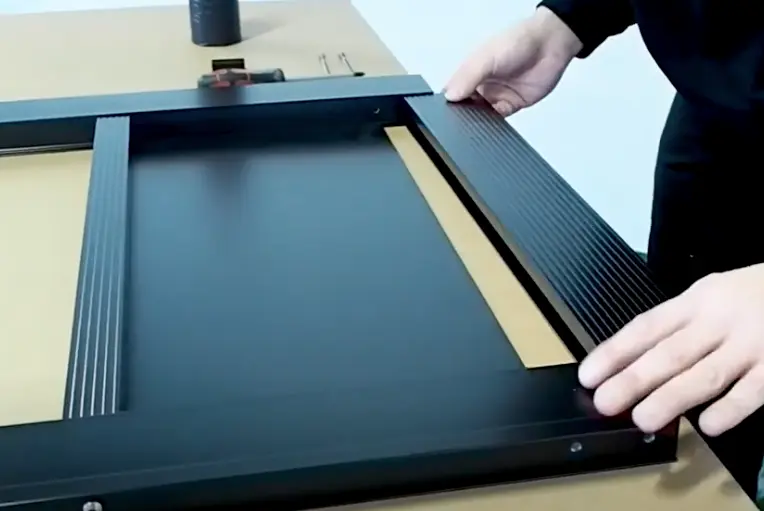

Now assemble the windows. The window profiles in Juliana models should be assembled around the glass/polycarbonate.

Step 8

Slide Glazing Beads into Place

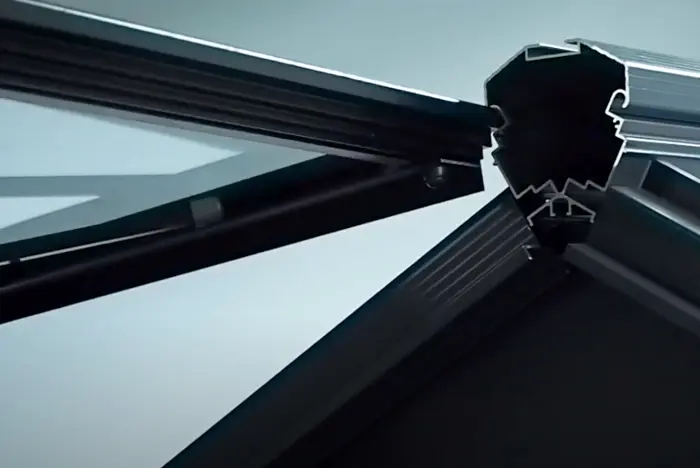

Slide the window’s hinge bead into the ridge bar from the end and slide it over to the section where you want it to be placed. The bead will slide more easily if you lubricate it with oil.

Step 9

Assemble the Greenhouse Door

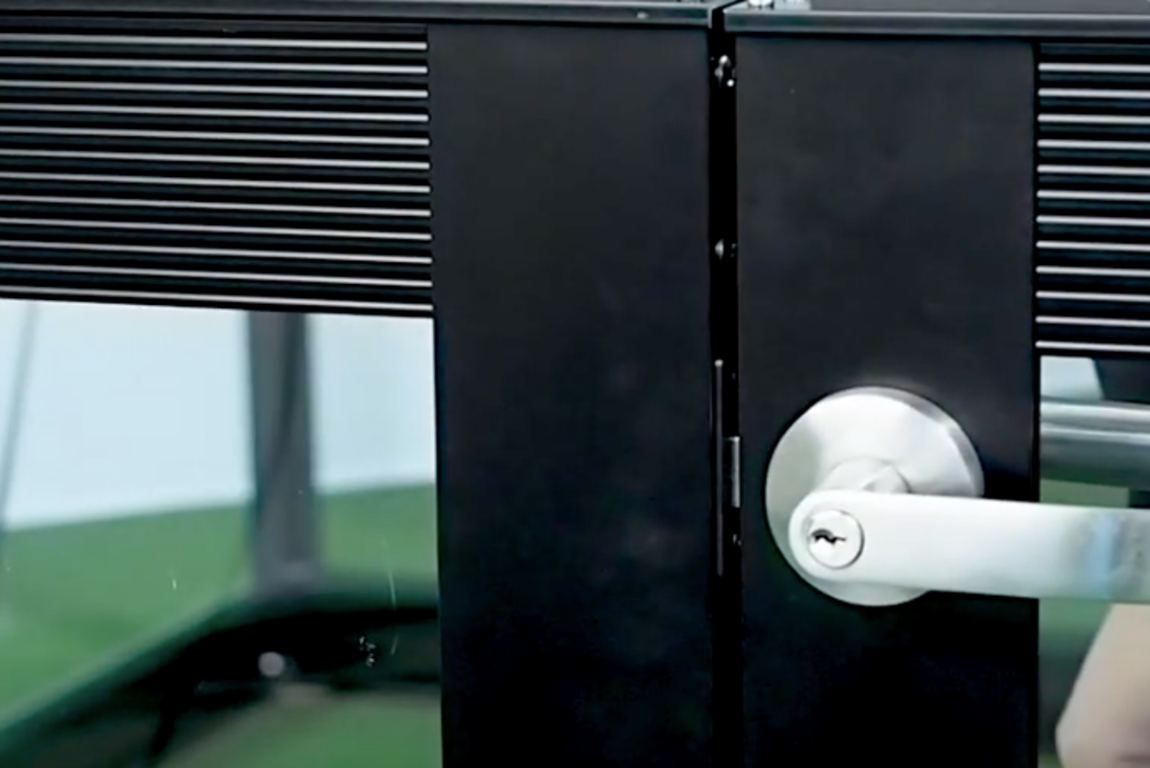

Now assemble the door.

Lay out the frames on the ground to see how the door looks before you assemble it.

For Juliana models, assemble the door around the glazing (glass/polycarbonate).

Step 10

Double-Check Level and Diagonal Measurements

Before attaching the door/doors, it is important to make sure the greenhouse is plumb and level and that it is square by taking the diagonal measurements as well.
