Establishing the Base

Assembly and adjustment of the base for a Juliana Greenhouse


Greenhouse on a Foundation

To achieve the best end result, it is crucial to assemble the foundation with great care.


Watch the video and learn how to best assemble and adjust the foundation for your greenhouse.The example in the video may differ from your greenhouse. These are overall guidelines for foundation assembly. For exact assembly, see the included instructions.


Alternatively, you can follow the written guide below.


NB! For bigger greenhouses, see another method in the assembly instruction.

Before you Start

It is important to erect the greenhouse on a strong base that is firmly anchored in the ground.


The base must be both level and square, because otherwise it will be difficult to assemble and erect the greenhouse, particularly the glazing process (glass or polycarbonate). Therefore, cast the base with care and precision. A step-by-step guide is provided here to show you to how to lay out and set up your base.


You will need the following to lay the base:

  • Spirit level
  • Cement and gravel
  • Spade or post-hole digger
  • Measuring tape
  • Pliers
  • Spanner, 10 mm
  • Juliana Start-Mix (socket wrench), optional


Important Before you Start

It is important to erect the greenhouse on a strong base that is firmly anchored in the ground.


The base must be both level and square, because otherwise it will be difficult to assemble and erect the greenhouse, particularly the glazing process (glass or polycarbonate). Therefore, cast the base with care and precision. A step-by-step guide is provided here to show you to how to lay out and set up your base.


You will need the following to lay the base:

  • Spirit level
  • Cement and gravel
  • Spade or post-hole digger
  • Measuring tape
  • Pliers
  • Spanner, 10 mm
  • Juliana Start-Mix (socket wrench), optional

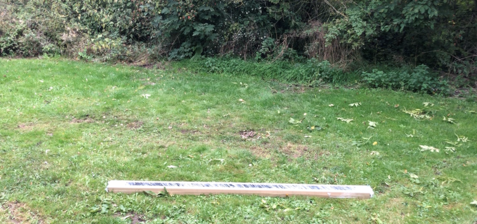

Step 1

Readying the Area

Start by preparing the area where the greenhouse will be erected. Make sure the area is cleared, even and levelled off.

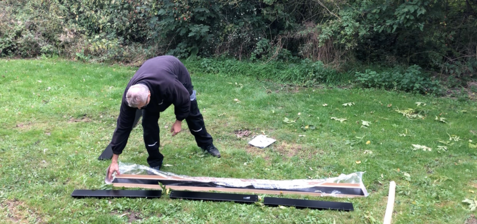

Step 2

Take the Foundation and Start Unpacking

Take the foundation to the place where it is intended. Assess already here whether the space is sufficient and whether the surface is even. Unpack your foundation, being careful not to scratch items.

Step 3

Check the Model and Size

Check that your foundation is the correct size and is free of damage. At the same time, check whether all parts are present. (note that some models may have parts for use in the foundation which are found elsewhere in the delivery). Check the assembly instructions.

Step 4

Check the Base Dimensions

Make sure that the base dimensions are correct before assembling and casting it in place.The dimensions are found in the assembly instructions.

Step 5

Assemble the Base

Assemble the base with the included anchor legs.

For bases bigger than 9 m2, additional anchor legs must be attached to the inner surface of the side sections (using the long bolts).

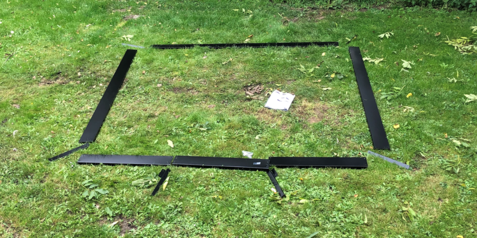

Step 6

Position the Base

Lay out the base components on the area where you plan to erect the greenhouse.

Step 7

Take Diagonal Measurements

Measure the base diagonally to square it. The two diagonal measurements must be equal.

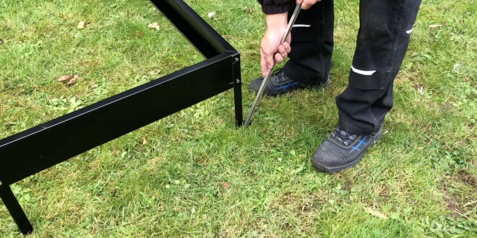

Step 8

Mark Out the Corners

Insert a stick in the ground for each anchor leg so you know exactly where to dig/bore. Then remove the base frame.

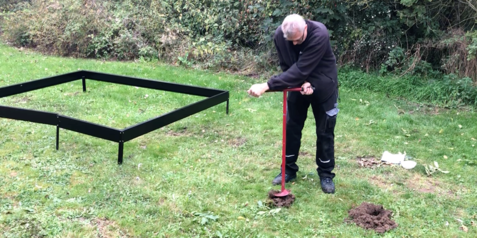

Step 9

Bore/Dig Holes

Dig or bore holes at the spots where you are going to cast anchor legs. The holes must be dug down to frost-free depth.

Step 10

Bend the Anchor Leg

Before inserting the anchor leg into the ground, bend the end to give it a better grip when cast in cement.

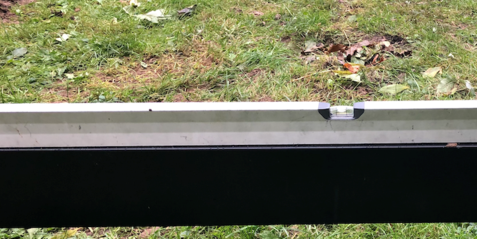

Step 11

Ensure that the Base is Level and Double-check Diagonal Measurements

Level off the base and re-measure it diagonally to make sure it is square.

Do this very carefully because otherwise it will be difficult to assemble and glaze (with glass or polycarbonate) if these measurements are not correct.

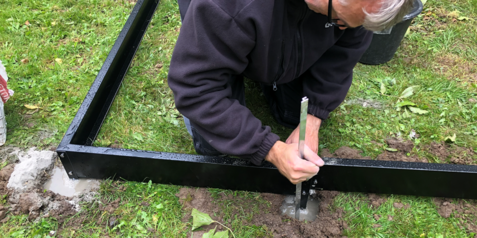

Step 12

Pour Cement in the Holes and Let it Set

Pour cement by the anchor leg and let it set for 24 hours or so.

Add just the right amount of water to the cement mixture. The less you add, the stronger the cement.

Step 13

The Base Is Ready

The base is now ready for assembling and erecting the greenhouse.
